EmPower
Large Scale Hybrid UPS System
Large Scale Hybrid UPS System: Megawatt Hydrogen Fuel Cell Prime Power for Data Centers and Industrial Facilities.
250kW +
continuous Output per module
250 to 400 kWh
integrated battery storage
300 kW
Peak Inverter Output
15-18 kWh
per 1 kg hydrogen fuel
[ 01 ] Stationary Power
The EmPower System is a large-scale hybrid UPS platform powered by hydrogen fuel cells, delivering continuous prime and zero millisecond transfer online power at 250 kW per module. Designed to scale in parallel into multi-megawatt configurations, each compact ISO container also integrates up to 400 kWh of battery storage. This modular architecture outlasts limited battery-only setups and replaces legacy diesel generators with clean, resilient long-duration energy.
Compact Multi-Megawatt Footprint with Integrated Battery Buffering: Packages up to 250 kW continuous per module (scalable to megawatts) and up to 250 kWh of battery storage inside a single 20' footprint.
Zero-Degradation Long-Duration Energy Storage (LDES): Operates indefinitely at full load as long as fuel is supplied, eliminating battery depletion limits and diesel fuel spoilage.
Wide Fuel Pressure Ingestion (15 to 700 Bar Input): Internal manifolds accept low-pressure electrolyzer feeds (15 to 30 bar) or high-pressure delivery trailers directly without expensive external regulator skids.
[ 02 ] Inside The System
250 kW Scalable Fuel Cell Generation Core
Delivering up to 250 kW of continuous prime electricity per 20' container, the system easily scales in parallel up to megawatts for large enterprise facilities and data centers. It replaces combustion generators with high-efficiency hydrogen fuel cell modules, producing zero emissions and pure water as the only byproduct.
Up to 400 kWh / 250 kw module Dynamic Energy Storage Array
Fully integrated within the enclosure, the lithium battery system scales from 400 kWh up to the needed kWh to buffer high-peak inductive surges, heavy chiller startups, and rapid EV charging spikes. It also functions as a standalone BESS for commercial utility peak shaving and dynamic frequency response.
250 kW Continuous / 300 kW Peak Power Conversion Subsystem
High-capacity industrial power conversion skids convert native DC fuel cell and battery power into stable 480V 3-phase AC power with integrated utility synchronization. Rated for 250 kW continuous net output with 300 kW peak inverter headroom, the subsystem absorbs heavy inductive motor startups, chiller surges, and rapid load steps without voltage fluctuation.
Always-Online Double-Conversion Architecture
Built as an always-online double-conversion UPS, the EmPower system continuously filters incoming site electricity and assumes full load with zero millisecond transfer time during grid failures. This instant failover protects hyperscale data racks, tier-4 servers, and sensitive industrial processors from expensive power sags and outages.
Universal 15 to 700 Bar High-Flow Gas Manifold
The internal hydrogen manifold accepts gas supplies ranging from 15 bar electrolyzer feeds up to 700 bar without requiring outboard regulators. Cloud-connected telematics continually track fuel burn rates, cell efficiency, and trigger automatic Virtual Pipeline resupply deliveries.
Remote / Construction
Supply high-capacity 480V three-phase prime power to run heavy machinery, cranes, and site operations completely off-grid.
Maritime Ports
Deliver clean megawatt-scale shore power to docked vessels and cargo cranes.
Fleet Charging
Provide high-throughput fast charging for delivery fleets bypassing substation delays.

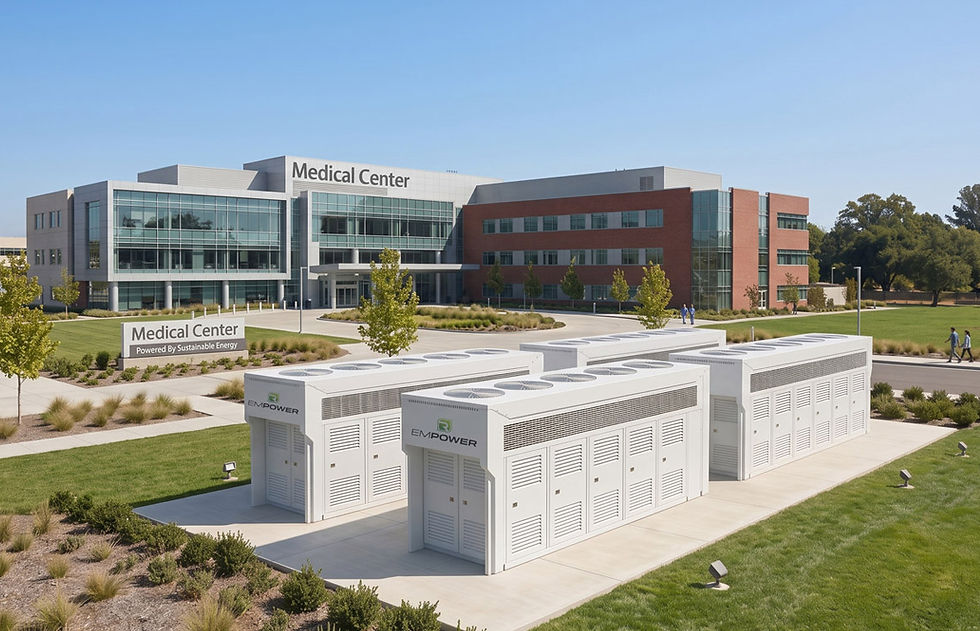

Critical Healthcare
Zero-interruption prime and backup power for critical care with continuous UPS protection.
Utility Substation Backup
Supply megawatt-scale grid support, peak reduction, and instant emergency backup.
