Mobile Energy Command - Hydrogen
Mobile Hydrogen Microgrid Platform

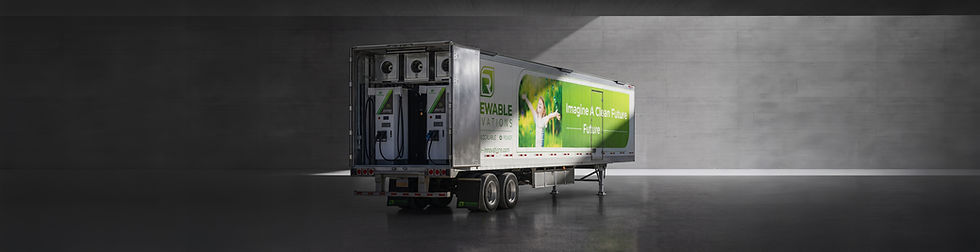

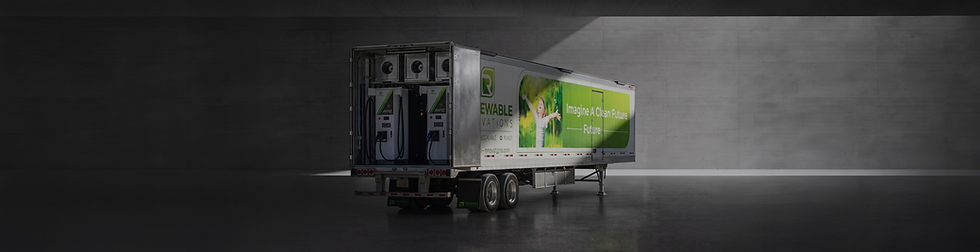

The MEC-H is an industrial-scale, semi-trailer-based mobile power generation and rapid EV charging system. It delivers high-capacity, grid-independent power directly to locations where local grid infrastructure is insufficient or nonexistent.

While configured with hydrogen fuel cells in the MEC-H model, the platform is designed to be highly versatile:   Hydrogen Fuel Cell Power: Operates using high-capacity onboard fuel cells, lithium-ion buffering/storage batteries, and inverters for zero-emission electricity generation.   Mobile BESS (Battery Energy Storage System): Utilizes large-format lithium-ion battery banks to provide emission-free peak shaving, energy buffering, and emergency facility power. Hybrid Power Systems: Integrates multiple power inputs—including batteries, renewables, or auxiliary power sources—to optimize runtime, power delivery, and load profiles.

The MEC-H acts as a high-throughput mobile charging hub. It is equipped with dual 180 kW Rapid DC Fast Chargers supporting up to 4 rapid charging outlets (plus support for PHEVs), enabling multiple vehicles to charge simultaneously to a "full tank" in under 15–20 minutes.

Yes. In addition to vehicle charging, the MEC-H can deliver up to 750 kW of peak power output to external loads, making it suitable for powering large festivals, industrial construction sites, disaster recovery operations, and commercial facilities.

Off-Grid EV Fleets & R&D Testing: Powering fleet test tracks, OEM vehicle testing in remote desert/extreme environments, and off-road rallies (e.g., Rebelle Rally).   Film & Entertainment Production: Silent, large-scale power on movie sets where generator engine noise interferes with filming.   Emergency Services & Disaster Relief: Instantaneous, carbon-free power for field hospitals, command centers, and safety shelters.   Large Public Events: Quietly running EV charging hubs, food service, lighting arrays, and audio/PA systems.   Remote Construction & Mining: Supplying heavy-duty three-phase electrical power without diesel combustion or local emissions.

Yes. The MEC platform is modular and expandable. Multiple units can be paralleled together or connected with stationary Virtual Pipeline storage modules and facility infrastructure for megawatt-scale power demands.

Total Power Output / Inverter Rating: 560 kW to 750 kW.   Fuel Cell Rating: 240 kW up to 680 kW (delivering ~400 VDC to the power converters and inverters).   Battery Capacity: 440+ kWh minimum integrated lithium-ion battery array.   EV Charging Outlets: 2 x double units (4 vehicle DC fast charge outlets, up to 180 kW each) + 4 PHEV connections.   Hydrogen Requirements: Hydorgen quality as per SAE J2719 (average consumption ~16 kWh per 1 kg of H₂) Electrical AC Outputs: 120/208V (Balance of Plant) and 480V Delta.   Operating Environment: -40°C to +45°C (-40°F to 113°F); 0–95% non-condensing humidity; elevations up to 1,500 m above sea level.   Trailer Dimensions (L x W x H): 16.2 m x 2.6 m x 4.1 m (53’ x 8’6” x 13’6”).
